A special design for a Panoramic-video production.

1 Customer request: An extremely small and lightweight body with three built-in monitors to produce.

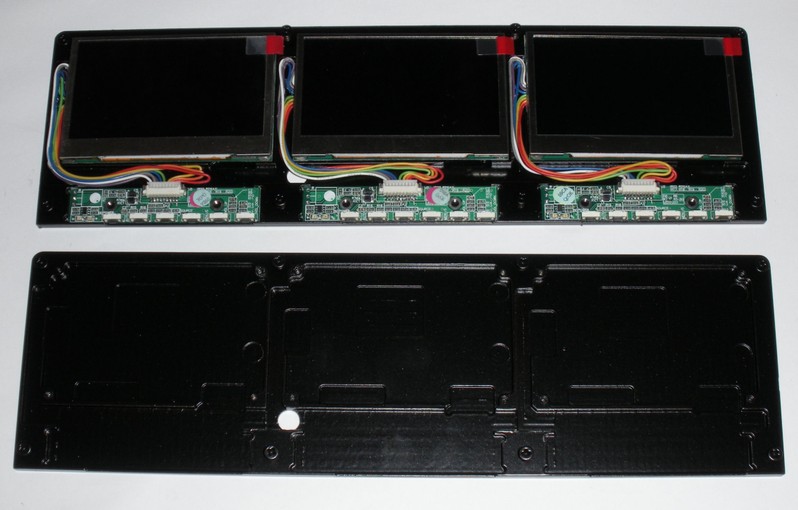

We have a CAD design software constructs a housing, each level of the monitor modules has been considered.
The finished display case with three 5 "OLED monitors was 280mm long, 85mm high and 8mm thick, with a total weight of 160 grams.

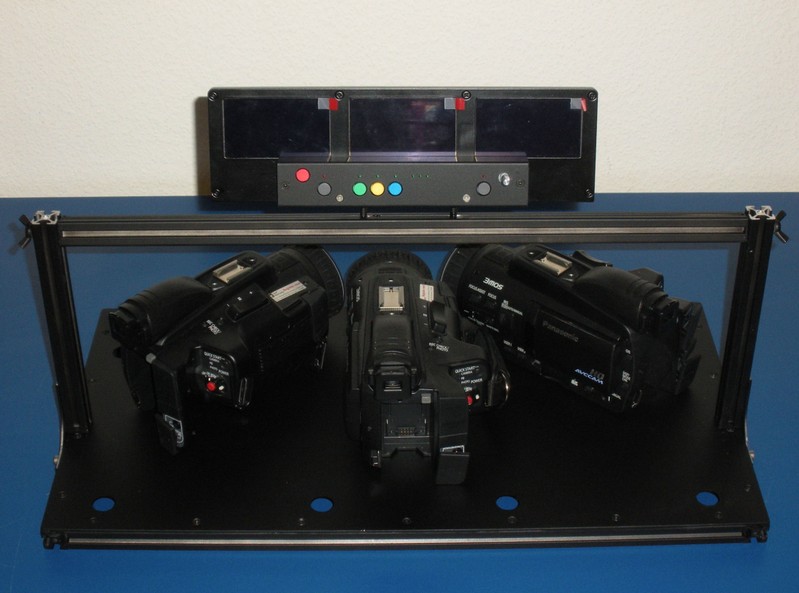

2 Customer request: A small control for synchronous control of aperture, focus and Zomm for three HD cameras.

We have made a small case with a built in Microprocessor control.
Thus, deviations of the individual cameras in an EEPROM could be stored and simultaneously, as well as a uniform set of all three cameras are realized.
